Continental ContiTech HR4 and DR5 Hydraulic Hoses

Amazon Hose & Rubber Company is proud to be a Select Distributor for Continental ContiTech HR4 and DR5 Hydraulic hoses. With Continental ContiTech’s precision-engineered hydraulic hose products, fittings, adapter and crimp equipment, there is no worry about inconsistencies or parts that do not fit. Below we will go into more detail regarding the HR4 and DR5 hoses and their features.

HR4 Increased Working Pressure

SAE 100R4   ¦   Low Pressure

• Application: Low-pressure, high temperature return line or suction line for petroleum – and waster-based hydraulic fluids. Vacuum rating 25 in Hg. HR4 has half the bend radius of typical SAE 100R4.
• Tube: Nitrile
• Cover: Black Polychloroprene
• Reinforcement: Spiral-plied synthetic fabric with wire helix
• Temperature Range: -40°F to 275°F (-40°C to 135°C)
• Fittings: Speak to an Amazon Hose Representative for best fittings for your application
• Branding Example: Continental ContiTech HR4-12 SAE 100R4 3/4″ (19mm) W.P. 350 psi (2.1 MPa) MSHA IC-152/8

*Meets Flame Resistance USMSHA Designation and SAE J1942/U.S. Coast Guard

Desert® DR5

SAE 100R5   ¦   Fleet Application   ¦   High Temperature

• Application: High-temperature, medium pressure hose for use in applications including turbocharger oil lines, tilt cab cylinder and air brake lines, transmission coolant and filtration lines. Compatible with petroleum oil and phosphate ester-based hydraulic fluids, air, water, diesel fuel, petroleum based lubricating oils and coolants.
• Note: Not recommended for under-the-hood, automotive and truck fuel line applications. Only hoses designed and tested to meet SAE fuel line standards should be used for these applications.
• Note: Sizes 7/8″ (-16) and 1a” (-20) do not meet SAE J1402 Type All & DOT FMVSS 106 Type All because these sizes are not listed in the referenced specifications.
• Construction:
• Inner Tube – CPE
• Reinforcement – One braid textile, one braid steel
• Cover – Blue impregnated textile braid
• Temperature: SAE 100R5 Hydraulic Applications: -40°F to 302°F (-40°C to 150°C), Air Brake Applications: -40°F to 200°F (-40°C to 93°C), General Hot Oil Applications: -40°F to 302°F (-40°C to 150°C), General Air Applications: -40°F to 200°F (-40°C to 93°C), Water Applications: -40°F to 212°F (-40°C to 100°C)
• Fittings: Speak to an Amazon Hose Representative for best fittings for your application

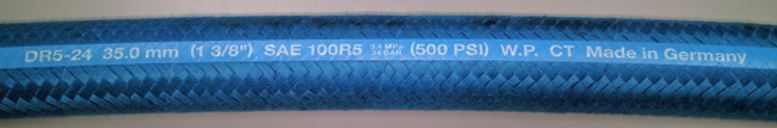

• Branding Example: Continental ContiTech DR5-24 35.0mm (1 3/8″) SAE 100R5 3.4MPA 34BAR (500 PSI) W.P. CT Made in Germany

*Meets or exceeds the performance requirements of SAE 100R5; SAE J1402 Type All, DOT FMMSS 106 Type All, and SAE J1942/U.S. Coast Guard

For other Continental ContiTech hydraulic hoses and applications, please call one of our experienced Hose Experts at (800) 506-5514 or visit us online at www.AmazonHose.com!
