Amazon Hose & Rubber Company is a master distributor for Reelcraft hose reels. Reelcraft is the leading global manufacturer of the widest range of hose reels, cord reels and cable reels for industrial, commercial and professional applications. Reelcraft’s key focus is to produce durable, quality products that make hoses, cords and cables more productive, keep them easily accessible and make them last longer. Work smarter with Reelcraft’s complete line of spring-driven, motor driven and hand crank hose reels, cord reels and cable reels. Common applications for Reelcraft products include:
- Pressure Washing
- Air Tool
- Hydraulic Tool
- Automotive Reels
- Fuel Delivery Reels
- Paving and Sealcoating
- Aviation / Ground Support
Below are products in the Reelcraft line-up stocked by Amazon Hose:
General Industrial Spring Driven Reels
Series RT
Series RT is an economical choice for a medium duty, lighter weight, spring-driven hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use.
Model Hose Hose Max (M)NPTF (F)NPTF Dimensions Weight
I.D. Length PSI Hose Outlet Reel Inlet L x W x H (In.) (lbs.)
RT435-OLP 1/4” 35’ 300 1/4” 3/8” 16-1/2 x 5-3/4 x 17-7/8 21
RT450-OLP 1/4” 50’ 300 1/4” 3/8” 16-1/2 x 5-3/4 x 17-7/8 24
RT635-OLP 3/8” 35’ 300 1/4” 3/8” 16-1/2 x 5-3/4 x 17-7/8 21
RT650-OLP 3/8” 50’ 300 1/4” 1/2” 16-1/2 x 6-1/4 x 17-7/8 27
RT835-OLP 1/2” 35’ 300 1/2” 1/2” 16-1/2 x 6-1/4 x 17-7/8 27
RT850-OLP 1/2” 50’ 300 1/2” 1/2” 16-1/2 x 7-3/4 x 17-7/8 37
Premium Industrial Spring Driven Reels
Series 4000 / 5000 / 5005
Reelcraft’s Series 4000, 5000 and 5005 reels are all steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery.
Model Hose Hose Max (M)NPTF (F)NPTF Dimensions Weight
I.D. Length PSI Hose Outlet Reel Inlet L x W x H (In.) (lbs.)
4435 OLP 1/4” 35’ 300 1/4” 3/8” 12-3/8 x 5-5/8 x 12-7/8 19
5450 OLP 1/4” 50’ 300 1/4” 3/8” 14 x 6-1/8 x 14-3/8 26
4625 OLP 3/8” 25’ 300 1/4” 3/8” 12-3/8 x 5-5/8 x 12-7/8 20
5635 OLP 3/8” 35’ 300 1/4” 3/8” 14 x 6-1/8 x 14-3/8 25
5650 OLP 3/8” 50’ 300 1/4” 3/8” 16-1/2 x 5-7/8 x 17-5/8 36
A5825 OLP 1/2” 25’ 300 1/2” 3/8” 14 x 6-1/8 x 14-3/8 27
A5850 OLP 1/2” 50’ 300 1/2” 3/8” 16-1/2 x 7-1/4 x 17-5/8 41
Pressure Wash Reels
Series H18006 / 30000 / PW
Compact design and quality steel construction are incorporated into Reelcraft’s newest line of pressure wash reels, rated up to 5000 PSI. Series PW, H18006 and 30000 reels are able to carry 50 to 300 feet of tangle-free hose and are complete with a high pressure water swivel for maximum product delivery.
Model Hose Hose Max (M)NPTF (F)NPTF Dimensions Weight
I.D. Capacity PSI Hose Outlet Reel Inlet L x W x H (In.) (lbs.)
Hand Crank Reels
H18006 M* 3/8” 100’ 5000 1/2” 1/2” 17-3/4 x 13-3/4 x 20-1/8 31
CA38106 M* 3/8” 140’ 5000 1/2” 1/2” 17-3/4 x 19-3/4 x 20-1/4 41
CA38112 M* 3/8” 300’ 5000 1/2” 1/2” 17-3/4 x 25-3/4 x 20-1/4 46
Spring Driven Reels
PW7600 OHP* 3/8” 50’ 5000 1/2” 1/2” 19-3/4 x 7 x 20-1/4 43
PW7650 OHP 3/8” 50’ 4800 1/4” 1/2” 19-3/4 x 7 x 20-1/4 60
PW81000 OHP* 3/8” 100’ 5000 3/8” 1/2” 24 x 10-1/2 x 25-3/8 86
*Hose not included.
Power and Light Cord Reels

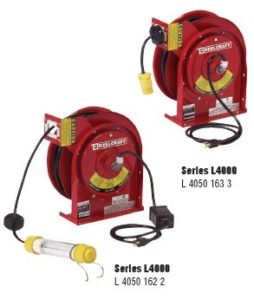

Series L4000 / L5000
Reelcraft’s Series L4000 and L5000 power and light cord reels are easy to mount and structurally strong. The reels have a robotically welded heavy gauge steel frame that attaches to most structurally sound surfaces.
Model Cord AWG # Cond. Length Type Volts AMPS Weight
Ending (lbs.)
Power Cord Reels
L 4050 163 3 Single Receptacle 16 3 50’ SJTOW 125 13 26
L 4545 123 3 Single Receptacle 12 3 45’ SJEOOW 125 15 27
L 4545 123 7 Duplex Outlet Box w/GFCI(F) 12 3 45’ SJEOOW 125 15 29
L 4545 123 9G Triple tap w/GFCI(F) 12 3 45’ SJEOOW 125 15 29
Light Cord Reels
L 4050 163 1 Incandescent 16 3 50’ SJTOW 125 13 27
L 4050 162 2 Fluorescent 16 2 50’ SJTOW 125 0.3 26
Heavy Duty Hand Crank Reels
Series 30000
Reelcraft’s Series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. A full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life.
Model Hose Hose Max (M)NPTF (F)NPTF Dimensions Weight
I.D. Length PSI Hose Outlet Reel Inlet L x W x H (In.) (lbs.)
CA32112 L 1/2” 200’ 1000 1/2” 1/2” 17-3/4 x 25-3/4 x 20-1/4 46
CA33112 L 3/4” 100’ 1000 3/4” 3/4” 17-3/4 x 25-3/4 x 20-1/4 46
CA33118 L 3/4” 175’ 1000 3/4” 3/4” 17-3/4 x 31-3/4 x 20-1/4 51
CH37118 L 1” 100’ 1000 1” 1” 17-3/4 x 31-3/4 x 20-1/4 54
CA32112 M 1/2” 200’ 3000 1/2” 1/2” 17-3/4 x 25-3/4 x 20-1/4 46
Amazon Hose stocks the complete line of Reelcraft hose reels for multiple usage in all three of our locations throughout Florida. For further information, please contact one of our hose experts at 407-843-8190 or visit us at www.AmazonHose.com!
